Manny Canjar| country | Columbia |
| customer | Skydata Inc. - A GILAT Company, Florida, USA |
| end customer | Eléctrica S.A.E.S.P. (ISA) |

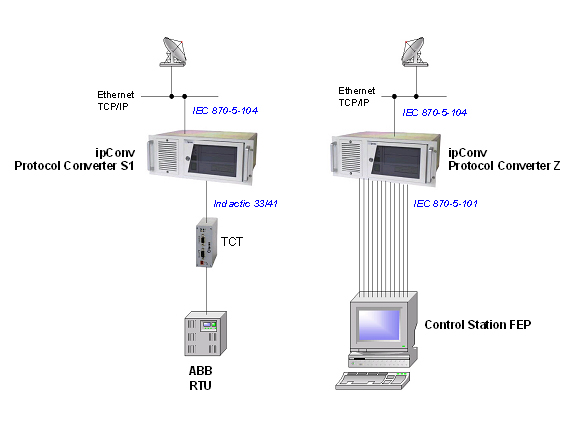

The protocol converter (S1), installed at one of several substations,
communicates with the RTU via
Indactic 33/41. Data dispatched from the RTU is converted to
the IEC 60870-5-104 protocol and transmitted as transport layer data via satellite
connection and
TCP/IP to the control center.
The protocol converter (Z) is connected directly to the front end processor (FEP).
Each substation is assigned a separate serial port for communication between
the protocol converter (Z) and the FEP.
Used Products
 | ipConv | Universal protocol converter for highest degree of flexibility
Details...
|
Used Protocol Stacks
Hardware
 | IPC194 19" 4HU | The robust and flexible industrial PC. This PC industrial PC can be extended about a passive backplane with a high number of ISA and PCI cards.
Details...
|  |
 | TCT | Telecontrol converter for pulse-code and pulse-length modulated protocols
Details...
| |
|
