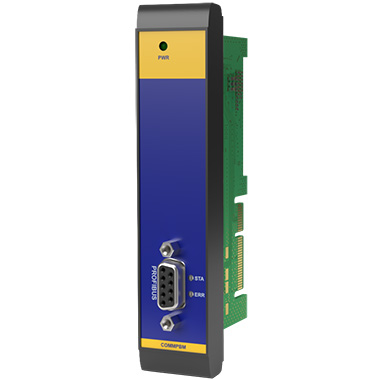

COMMPBM

Expansion module for MEC3 modular midrange embedded controller

Available soon!

  • The COMMPBM module expands the MEC3 by a Profibus Master interface.

Technical Details

  • PROFIBUS-DP interface

    PROFIBUS-DP master
    1 x RS-485, DB9 male connector
    9.6 KBit/s to 12 MBit/s
    Potential-free
    Max. 125 slaves
    Inputs /outputs: max. 244 Bytes per slave
    DPV0 / DPV1 Class1 & Class 2

  • Diagnostic LEDs

    Power supply indicator
    Status LED (STA)
    Error LED (ERR)
