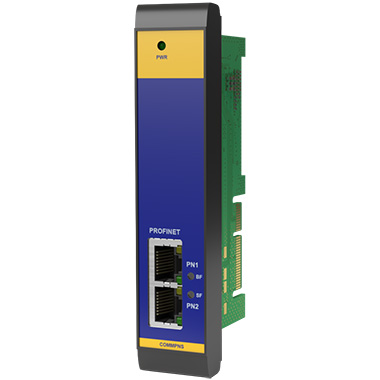

COMMPNS

Expansion module for MEC3 modular midrange embedded controller

Available soon!

  • The COMMPNS module expands the MEC3 by a Profinet Slave interface.

Technical Details

  • PROFINET IO system interface

    PROFINET IO Slave (IO device)
    2 x Industrial Ethernet, RJ45 female connector
    Potential-free
    10BASE-T/100BASE-TX
    Inputs and outputs: max. 1440 Bytes

  • Diagnostic LEDs

    Power supply indicator
    LINK and RX/TX (PN1/PN2)
    System error (SF)
    Bus error (BF)
