ipConv Use Cases

Simple Gateway for decentralized Applications

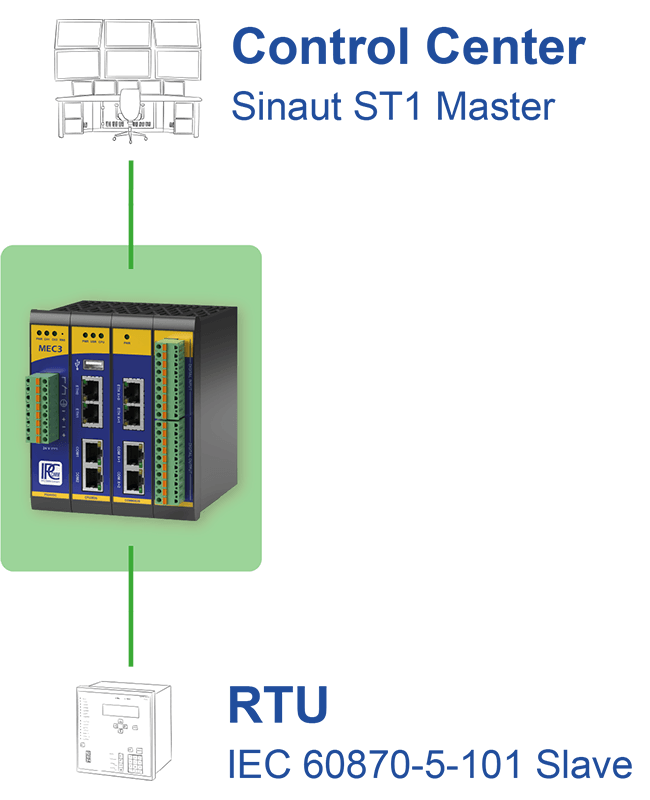

  • ipconvlite_one-to-one

    Our product ipConvLite has been designed for simple one-to-one protocol conversions. Together with the SEC3 or MEC2 hardware platform you have a compact, highly reliable system (no rotating parts) at your disposal. They come with up to four serial RS232 interfaces allowing several RTUs to be connected.

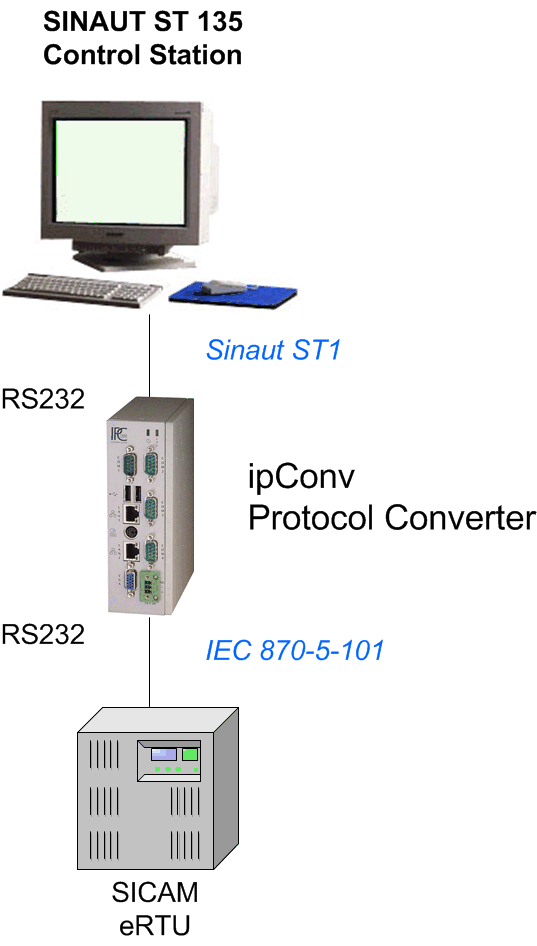

    The adjacent example shows a gateway connecting a control station based on the Sinaut ST1 protocol to an IEC 60870-5-101 substation.

    Attractively priced, this product offers great value for money, in particular if large quantities are needed for a large number of substations.

Conversion between LAN and serial protocols

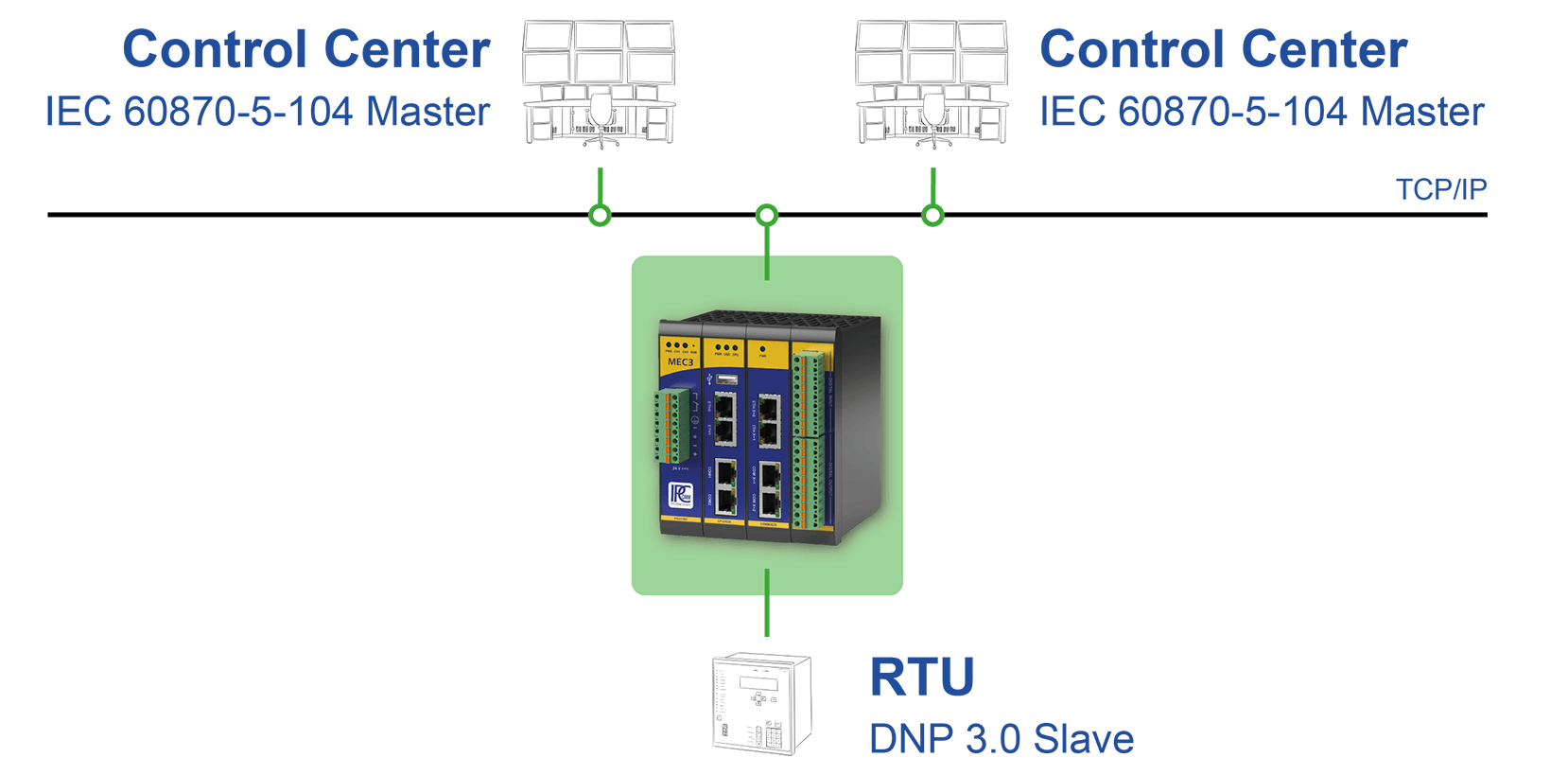

  • ipconvlite_lan-to-one

    The integrated RJ45 LAN port (10BaseT) allows communication via protocols such as IEC 60870-5-104. Even redundant control stations or telecontrol points can be connected.
    This variant offers an effective solution for migration from obsolete leased lines lines to a modern LAN/WAN architecture.

    The device can be remotely accessed any time via TCP/IP and a web interface, in order to change its configuration or carry out diagnosis. This saves you costly journeys to the substation.

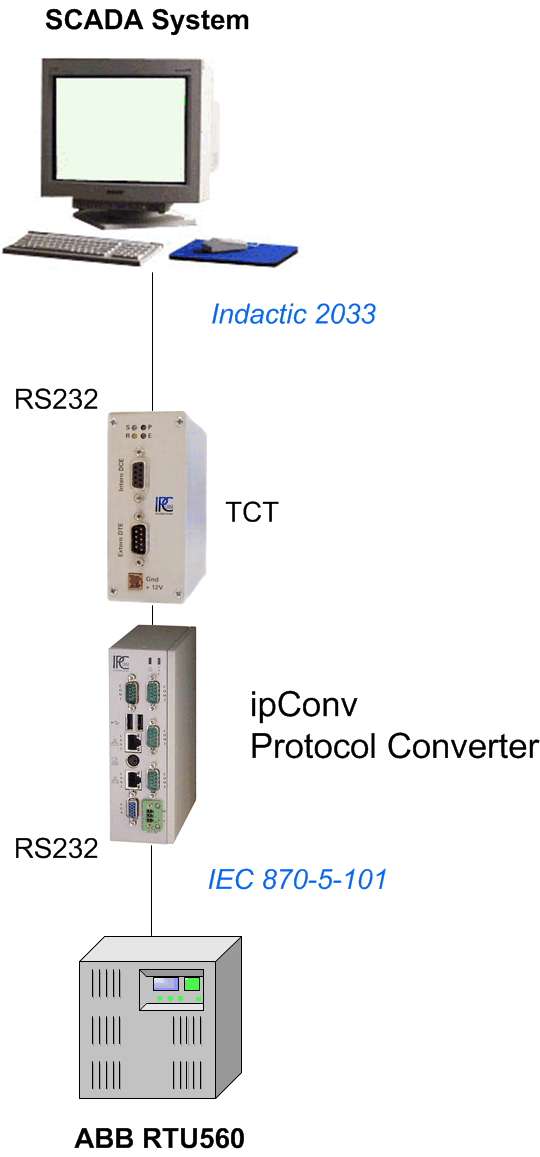

Interconnection between legacy and standard protocols

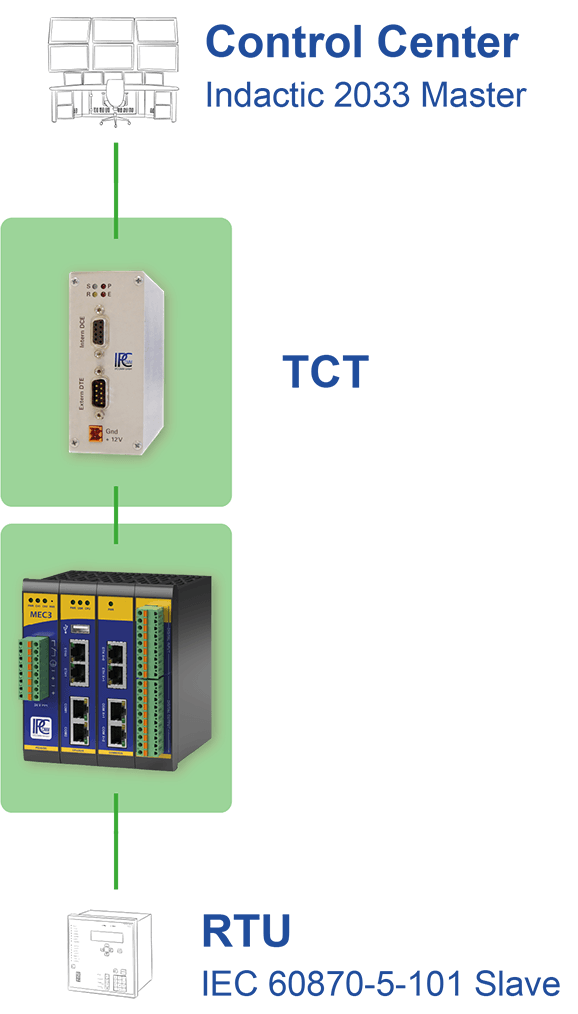

  • ipconvlite_legacy-to-modern

    The TCT add-on module can be used to connect modern RTUs to an existing control station or vice versa via the Indactic 2033, Sinaut 8FW, Conitel 2020 or CDC Type II protocols which do not comply with the standard RS232 interface. This module enables you to implement almost any pulse code or pulse length modulated protocols.
    This solution was implemented in the CFE and Interconnection BAGZV, EWAG projects.

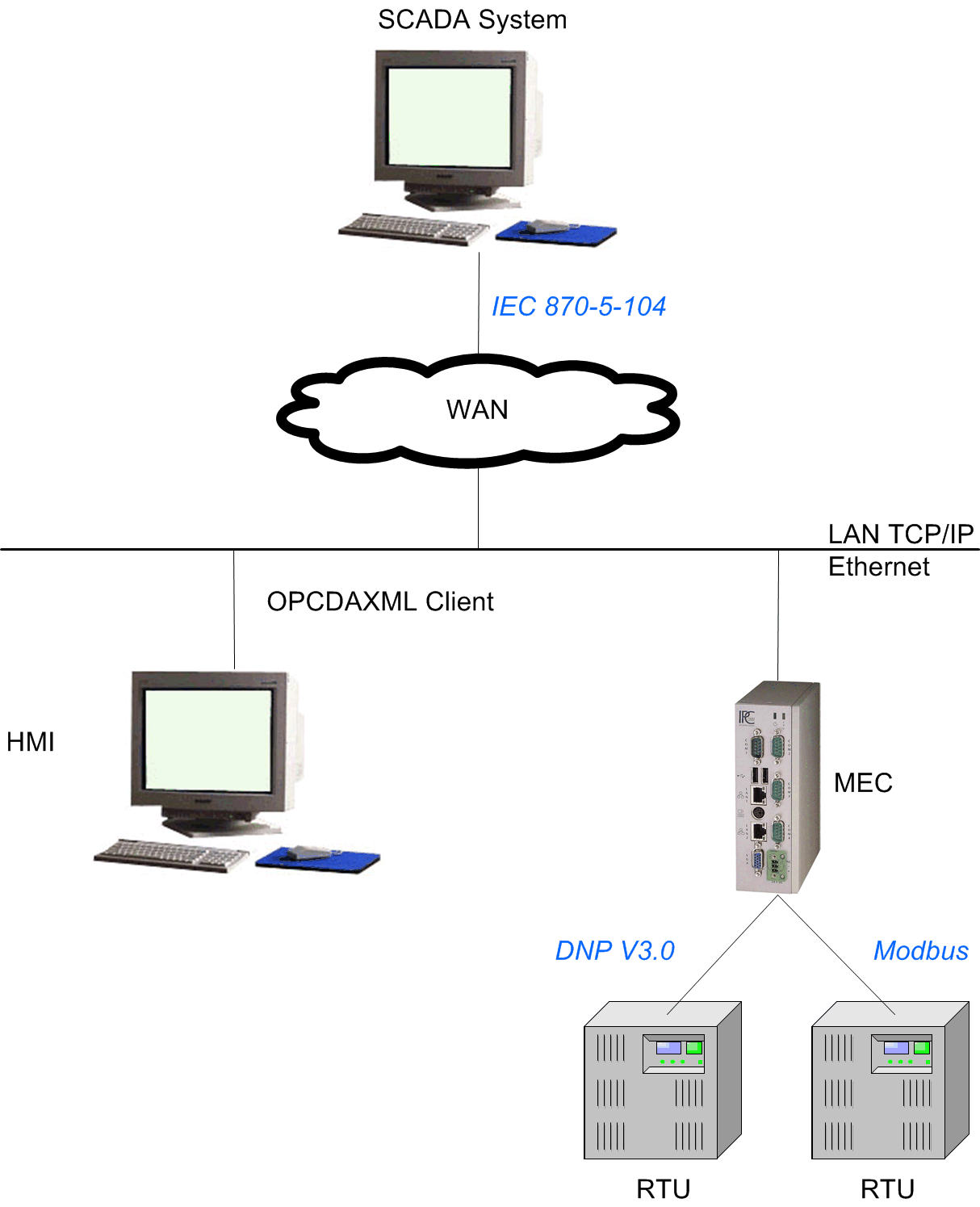

Decentralized node for connection with different SCADA systems

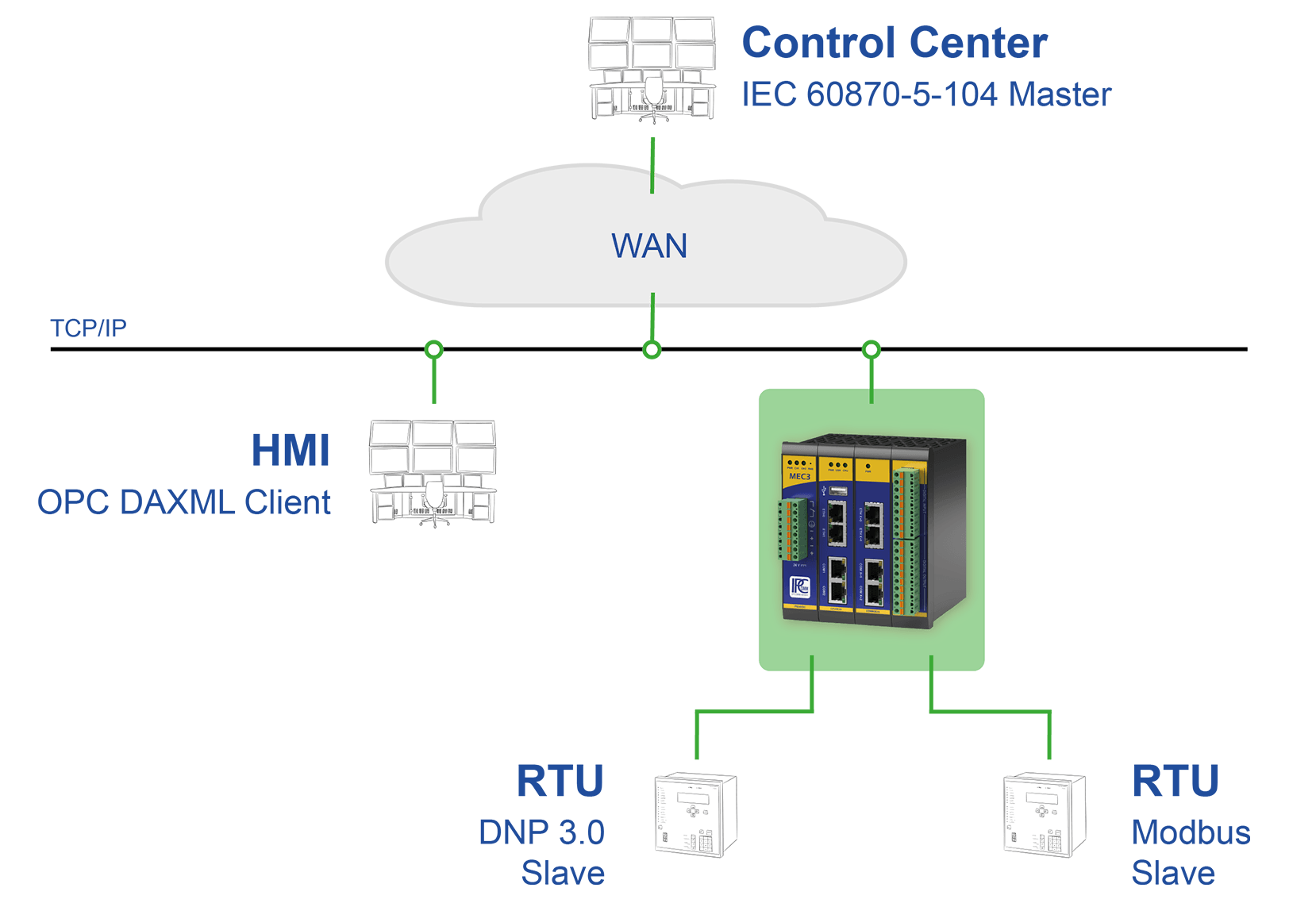

  • ipconvlite_node_SCADA

    ipConv and ipConvLite go way beyond the usual functionalities of a gateway, as they are capable of connecting several different protocol stacks.
    And with OPC DAXML 1.01, Server a local HMI system can also easily be connected.

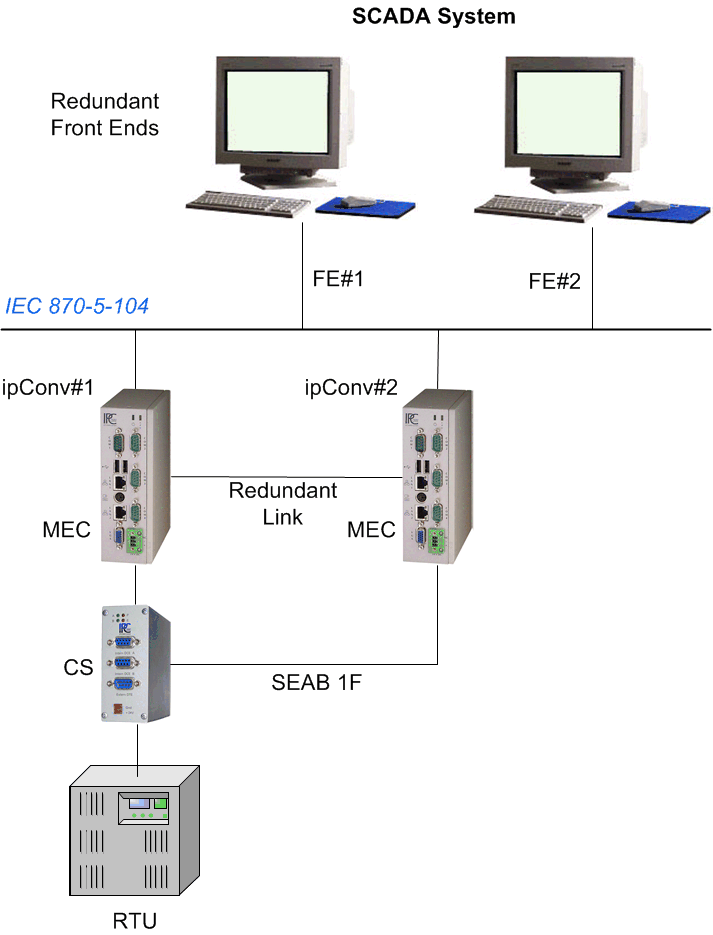

Redundant Gateway
  • ipconvlite_redundancy

    With some applications, system availability is a major priority. ipConv and ipConvLite also support the redundant operation of two devices. The redundant connection can be implemented either via a serial interface or via Ethernet. Use CS if you want to connect two devices via a serial interface.

Central communication hub
  • ipconv_node_central
